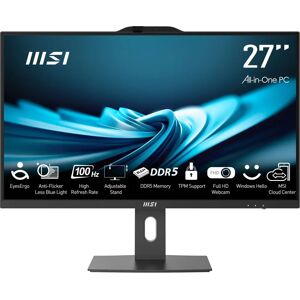

MSI - AP272P 14M - i7-14700 - 27 Inch - All-in-One PC

Display

• Display diagonal:68.6 cm (27")
• Display resolution:1920 x 1080 pixels
• Touchscreen:No
• HD type:Full HD
• Display brightness:250 cd/m²
• Panel type:IPS
• Pixel pitch:0.2745 x 0.2745 mm
• Anti-glare screen:Yes
• Tilt adjustment:Yes
• Tilt angle range:-4 - 20°

Processor

• Processor manufacturer:Intel
• Processor family:Intel® Core™ i7
• Processor generation:Intel® Core™ i7 (14th gen)
• Processor model:i7-14700
• Processor cores:20
• Processor threads:28
• Processor boost frequency:5.4 GHz
• Processor frequency:2.1 GHz
• Performance cores:8
• Efficient cores:12
• Performance-core Max Turbo Frequency:5.4 GHz
• Efficient-core Max Turbo Frequency:4.2 GHz
• Performance-core base frequency:2.1 GHz
• Efficient-core base frequency:1.5 GHz
• Processor cache:33 MB
• Processor cache type:Smart Cache
• Processor base power:65 W
• Maximum turbo power:219 W

Memory

• Internal memory:16 GB
• Internal memory type:DDR5-SDRAM
• Maximum internal memory:64 GB
• Memory slots:2
• Memory slots type:SO-DIMM
• Memory clock speed:2800 MHz
• Memory layout (slots x size):2 x 8 GB
• Memory form factor:DIMM/SO-DIMM

Storage

• Total storage capacity:1 TB
• Storage media:SSD
• Number of storage drives installed:1
• Total SSDs capacity:1 TB
• Number of SSDs installed:1
• SSD capacity:1 TB
• SSD interface:M.2
• NVMe:Yes
• SSD form factor:M.2
• M.2 SSD size:2280 (22 x 80 mm)
• Optical drive type:No

Graphics

• Discrete graphics card:No
• Discrete graphics card model:Not available
• On-board graphics card:Yes
• On-board GPU manufacturer:Intel
• On-board graphics card family:Intel® UHD Graphics
• On-board graphics card model:Intel UHD Graphics 770

Audio

• Built-in speaker(s):Yes
• Number of speakers:2
• RMS rated power:3 W
• Built-in microphone:Yes
• Audio chip:Realtek ALC897
• Audio system:HD

Camera

• Built-in camera:Yes
• Total megapixels:2 MP
• Camera HD type:Full HD
• Privacy camera:Yes

Network

• Wi-Fi:Yes
• Top Wi-Fi standard:Wi-Fi 6E (802.11ax)
• Wi-Fi standards:Wi-Fi 6E (802.11ax)
• WLAN controller manufacturer:Intel
• WLAN controller model:Intel Wi-Fi 6E AX211
• Ethernet LAN:Yes
• Ethernet LAN data rates:1000 Mbit/s
• Bluetooth:Yes
• Bluetooth version:5.3

Ports & interfaces

• Ethernet LAN (RJ-45) ports:1
• USB 2.0 ports quantity:2
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:2
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:1
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:1
• HDMI ports quantity:1
• HDMI version:2.1
• DisplayPorts quantity:1
• Headphone outputs:1
• Microphone in:Yes
• DC-in jack:Yes
• Number of rear USB ports:4
• Number of side USB ports:2
• Number of side audio ports:2
